Electronic V9071iW HMI Touch Screen FUJI MONITOUCH 24V DC

Name: Electronic V9071iW HMI Touch Screen FUJI MONITOUCH 24V DC
Brand: FUJI
Price: 150 USD

Place of Origin : China/Japan

Brand Name : FUJI

Model Number : V9071iW

Packaging Details : Carton packaging

Supply Ability : 10pc/per week

Price : $150-$2000

MOQ : 1/pc

Payment Terms : T/T, western union

Condition : 100% original and new

Warranty : 1Year

Package : Original Packing

Shipping Ways : DHL,FedEx,EMS

MOQ : 1 piece

Model number : V9071iW

Brand : Mitsubishi

Product name : Touch Screen HMI

Delivery time : 1-2days

Port : selectable

Contact Now

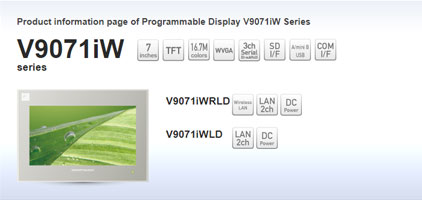

Electronic FUJI V9071iW HMI Touch Screen Displays Hakko MONITOUCH

Dimensions and Part Names

		V9071iW
Power supply	Rated voltage	24V DC
	Permissible range of voltage	DC: ±10%
	Permissible momentary power failure	DC within 1ms
	Demand (maximum rating)	DC: 27W or less
Insulation resistance		DC500V 10MΩ or more
Physical environment	Ambient temperature	0～50℃ *2
	Ambient humidity	85%RH or less (without dew condensation) *2
	Operation altitude	2,000 meters or lower
	Atmosphere	Not to be exposed to corrosive gas, or conductive dust
	Storage temperature	－10～60℃ *2
	Storage humidity	85%RH or less (without dew condensation) *2
	Overvoltage category	Category II
	Contamination level	Level 2
Mechanical operating conditions	Resistance to oscillation	Complies with JIS B 3502 (IEC61131-2) Vibration frequency: 5̃9Hz, pulsating with:3.5mm, 9̃150Hz, Acceleration: 9.8m/s2(1G),X,Y,Z: 3 directions (10 times each)
Mechanical operating conditions	Resistance to shock	Complies with JIS B 3502 (IEC61131-2) Peak acceleration: 147m/s2(15G), X,Y,Z: 3 directions, three times each (18 times in total)
Electric operating conditions	Resistance to noise	Noise voltage: 1,000Vp-p, pulse width: 1μs, pulse rise time: 1ns
Electric operating conditions	Resistance to static discharge	Complies with IEC61000-4-2, contact: 6kV, air: 8kV
Installation conditions	Grounding	Grounding resistance: Less than 100Ω, FG/SG separation
	Structure	Protect structure: Front panel: NEMA #250 TYPE 4X (indoor), TYPE 13 *3, equivalent to IP66 (when water-proof gasket is used.), Rear cover: Compatible with IP20, Form: Single unit, Installation method: Panel mounting
	Cooling system	Natural air cooling
	Dimensions WHD(mm)	201.6×147.6×60.3
	Panel cutout (mm)	187.2×133.4(+0.5/-0)
Case color		Light gray
Material		PC

2: Keep wet bulb temperature under 39°C to avoid malfunction.
3: Available or complying after release.

Performance Specifications

Screen memory (FROM)		64MB
Backup memory (SRAM)		800KB
Display	Display device	TFT color LCD
	Resolution	800×480
	Display size	7″wide
	Colors	16.7 million *4
	Backlight	LED
	Backlight life	100,000 hours
Touch switch	Type	Capacitance
External interface	D-Sub 9-pin (CN1)	RS-232C/ RS-422/485, Asynchronous type, Data length: 7,8 bits, Parity: even, odd, none, Stop bit: 1, 2 bits, Baud rate: 4800, 9600, Stop bit: 1, 2 bits, Baud rate: 4800, 9600, 19200, 38400, 57600, 76800, 115200,187500 *5bps
	Modular 8-pin (MJ1/MJ2)	RS-232C/ RS-422/485 (two-wire system), Asynchronous type, Data length: 7,8 bits, Parity: even, odd, none, Stop bit: 1, 2 bits, Baud rate: 4800, 9600, 19200, 38400, 57600, 76800, 115200 bps
	SD card	One card slot provided as standard
	Ethernet	2ch, Baud rate: 100Mbps, 10Mbps
	Wireless LAN	Complies with IEEE802.11b/g/n(2.4GHz)
	USB	Type A,Type mini-B(Ver.2.0)
	Sound output	-
Clock	Backup period	5 years (Ambient temperature 25°C)
Clock	Calendar accuracy	Gap ±90 sec. per month (Ambient temperature 25°C, when power is not supplied)
Standard	CE marking *6	EN61000-6-2,EN61000-6-4
	UL･cUL *6	UL508
	KC	Compliant
	Radio Act *6	Japan:TELEC USA:FCC Canada:IC RSS EU:R&TTE South Korea:KC

4: For the display of pictures, 3D parts and videos only. Other parts are displayed in 65,536 colors.
5: Available only when connected with SIEMENS MPI/PPI.
6: DC type only.

Electronic V9071iW HMI Touch Screen FUJI MONITOUCH 24V DC
