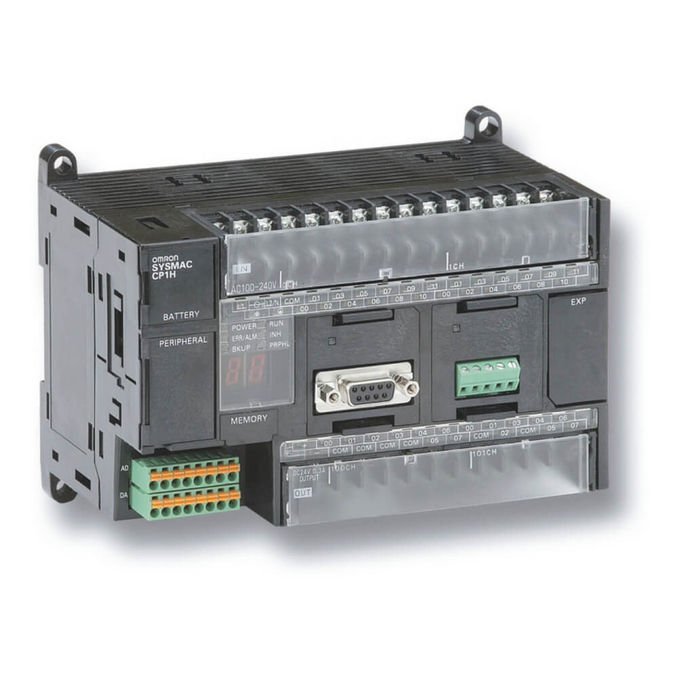

Automation Omron Sysmac CP1H PLC Module CP1H-XA40DR-A

Name: Automation Omron Sysmac CP1H PLC Module CP1HXA40DRA
Brand: Omron
Price: 50 USD

China Automation Omron Sysmac CP1H PLC Module CP1H-XA40DR-A wholesale

Brand Name : Omron

Model Number : CP1H-XA40DR-A

Packaging Details : Carton packaging

Supply Ability : 10pc/per week

Price : $50-500

MOQ : 1/pc

Place of Origin : China/Japan

Payment Terms : T/T, western union

Service : One-stop service

Package : Original Package

Quality : new and original

Lead time : In stock

Warrenty : 1 year

Delivery Detail : 3-5 working days after payment

Port : Guangdong Shenzhen Dongguan

Contact Now

High Quality Omron Automation Equipment CP1H PLC module CP1H-XA40DR-A

Specification

CP1H | Omron,

Ordering information

CP1H CPU	Digital input	Digital output	Max. I/O points (incl. expansions)	Input/output functions	Output type	Power supply	PLC port	Expandability	Program capacity	Data memory capacity	Logic execution speed	Order code
Y-type with 20 I/O points	12	8	300	4 Encoder inputs (2 × 1 MHz + 2 × 100 kHz) 4 Pulse outputs (2 × 1 MHz + 2 × 100 kHz) 6 Interrupts/counters	Transistor (sinking)	20.4 to 26.4 VDC	USB	Up to 7 expansion units 1 1. CP1H CPU series can be expanded with CP1W expansion units (up to 7 units) and CJ1 Special I/O units (up to 2 units).	20K steps	32K words	0.1 μs	CP1H-Y20DT-D
X-type with 40 I/O points	24	16	320	4 Encoder inputs (100 kHz) 8 Interrupts/counters	Relay	84 to 264 VAC						CP1H-X40DR-A
				4 Encoder inputs (100 kHz) 4 Pulse outputs (100 kHz) 8 Interrupts/counters	Transistor (sinking)	20.4 to 26.4 VDC						CP1H-X40DT-D
					Transistor (sourcing)	20.4 to 26.4 VDC						CP1H-X40DT1-D
XA-type with 40 I/O points and analog I/O				4 Encoder inputs (100 kHz) 8 Interrupts/counters 4 Analog inputs (1/12,000) 2 Analog outputs (1/12,000)	Relay	84 to 264 VAC						CP1H-XA40DR-A
				4 Encoder inputs (100 kHz) 4 Pulse outputs (100 kHz) 8 Interrupts/counters 4 Analog inputs (1/12,000) 2 Analog outputs (1/12,000)	Transistor (sinking)	20.4 to 26.4 VDC						CP1H-XA40DT-D
					Transistor (sourcing)	20.4 to 26.4 VDC						CP1H-XA40DT1-D

Note: Some expansion units count for 2 unit numbers (eg. CP1W-AD042, CP1W-DA042, CP1W-TS003 and CP1W-TS102) but only 7 expansion unit numbers can be allocated
in a CP1H PLC's configuration. There are more limitations for expansion units like, max. I/O words and total DC power consumption. See manual for more information.

Automation Omron Sysmac CP1H PLC Module CP1H-XA40DR-A

Accessories

Type	Remarks	Order code
Memory cassette	512K words (upload/download program)	CP1W-ME05M
USB programming cable	A-type male to B-type male (length: 1.8 m)	CP1W-CN221
RS-232C option board	D-Sub, 9 pins, female (15 m max.)	CP1W-CIF01
RS-422A/485 option board	Terminal block (50 m max.)	CP1W-CIF11
RS-422A/485 (isolated) option board	Terminal block (500 m max.)	CP1W-CIF12
Ethernet option board	100/10Base-TX (Auto-MDIX)	CP1W-CIF41
LCD display	4 rows × 12 characters	CP1W-DAM01
Expansion I/O connecting cable	80 cm cable to connect CP1W expansion units	CP1W-CN811
CJ1 expansion unit adapter	Unit to connect CJ1 Special I/O units	CP1W-EXT01
Battery	For replacement purpose	CJ1W-BAT01
